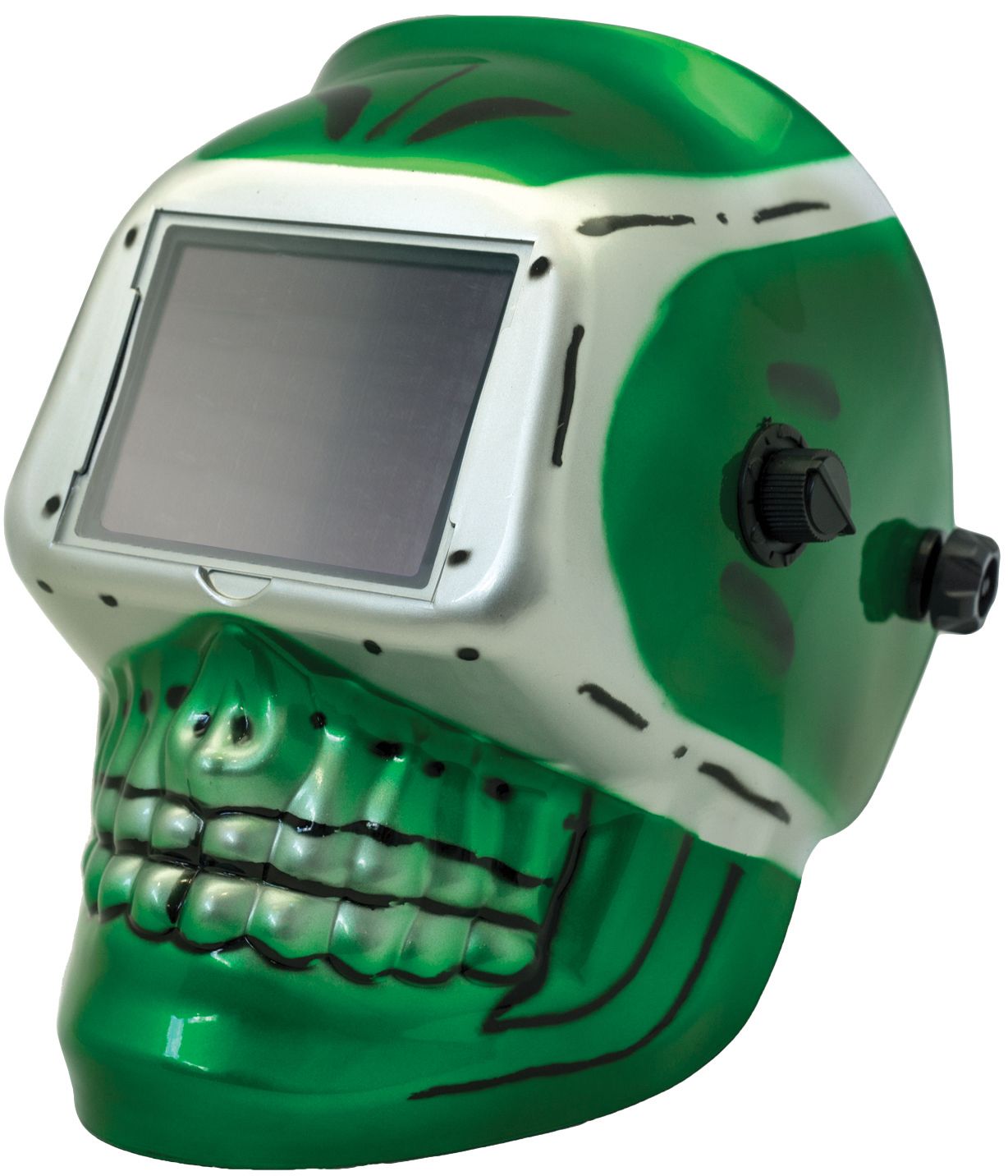

Automatic Welding Helmet MMA, MIG, MAG / C02, TIG, Plasma welding and cutting.

Automatic Welding Helmet from featuring a cutting-edge Skull design, engineered to perfection, this helmet is packed full of features to ensure optimal performance and safety across various welding processes.

Equipped with a state-of-the-art photoelectric liquid crystal light control system, this helmet offers unparalleled clarity and vision, with a generous field of view measuring 92 x 42mm and a cassette size of 110 x 90 x 9mm, you'll never miss a detail of your work.

Experience lightning-fast switching times of 1/25000 sec, providing instantaneous protection from harmful welding arcs. Transitioning from dark to light occurs seamlessly within 0.1 - 1.0 sec, ensuring your eyes are shielded from sudden flashes.

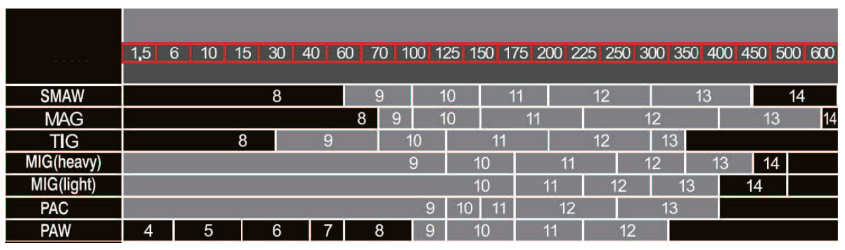

With adjustable protection levels ranging from DIN 4 in deactivated mode to DIN 9 - 13 in activated mode, you have complete control over your safety. External and internal regulators allow for customized sensitivity and delay settings, adapting to your specific needs.

Powered by a reliable CR2032 battery, this helmet is equipped with UV/IR protection rated at DIN 16, safeguarding your eyes from harmful radiation. Featuring two arc sensors and low-amp TIG capabilities down to 5 Amp, precision welding has never been easier.

Stay informed with the convenient low-battery display, ensuring uninterrupted workflow. The ADF self-test feature guarantees optimal functionality, while the wide operating temperature range from -5°C to +55°C ensures performance in various environments.

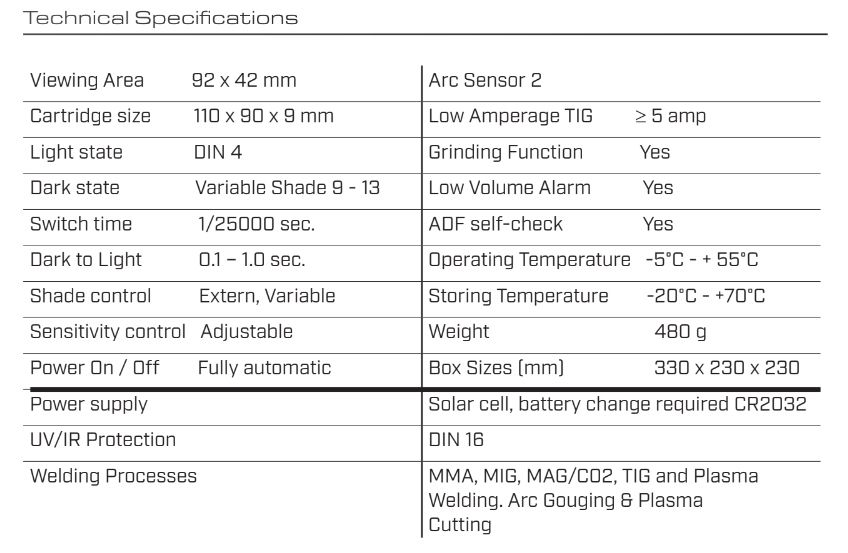

• MMA, MIG, MAG / C02, TIG, Plasma welding and cutting.

• Photoelectric liquid crystal light control.

• Field of view: 92 x 42mm.

• Cassette size: 110 x 90 x 9mm.

• Switching time 1/25000 sec.

• Time from dark to light 0.1 - 1.0 sec.

• Deactivated status: DIN 4.

• Activated status: DIN 9 - 13.

• External regulator for variable protection stages.

• Two way internal regulator for variable sensitivity and delay.

• Power supply: battery CR2032.

• UV / IR protection DIN 16.

• Arc sensor 2.

• Low-amp TIG => 5 Amp.

• Display for low-battery.

• ADF self-test.

• Operating temperature: -5°C to + 55°C.

• Storage temperature: -20°C to + 70°C.

• Weight: 480 g.
