Power Probe 600 Volt CAT IV Multi Meter With Leads - Hybrid Safe
Power Probe 600 Volt CAT IV Multi Meter With Leads - Hybrid Safe
Power Probe Hybrid Safe CAT-IV 600 Volt Digital Multimeter an essential tool designed with mechanics and workshops in mind, This rugged and versatile unit boasts a CAT-IV 600V hybrid safe rating, ensuring safety and accuracy in high-demand automotive environments.
The large LCD screen with a bright backlight enhances visibility, making it the perfect companion for precision testing, equipped with digital volt and ohmmeter functionalities, the PPDMM excels in circuit testing, providing mechanics with accurate readings for both AC and DC voltage and current.

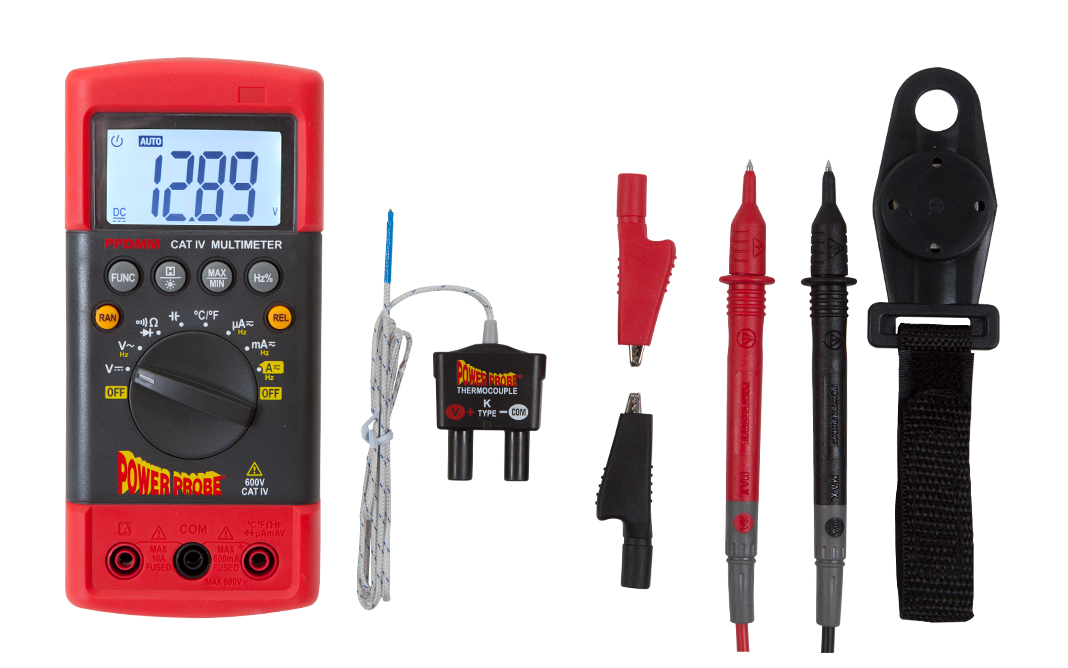

Its diverse capabilities extend to measuring resistance, frequency for sensor testing, and capacitance, offering a comprehensive solution for varied workshop needs, the inclusion of a K-Type Temp Probe further elevates the utility, allowing mechanics to seamlessly take temperature readings during diagnostic procedures.
Functions include AC/DC Voltage, Current, Resistance, Frequency, Continuity, Temperature, Capacitance, Data Hold, Min/Max Capture, Relative Measurements, Diode Testing

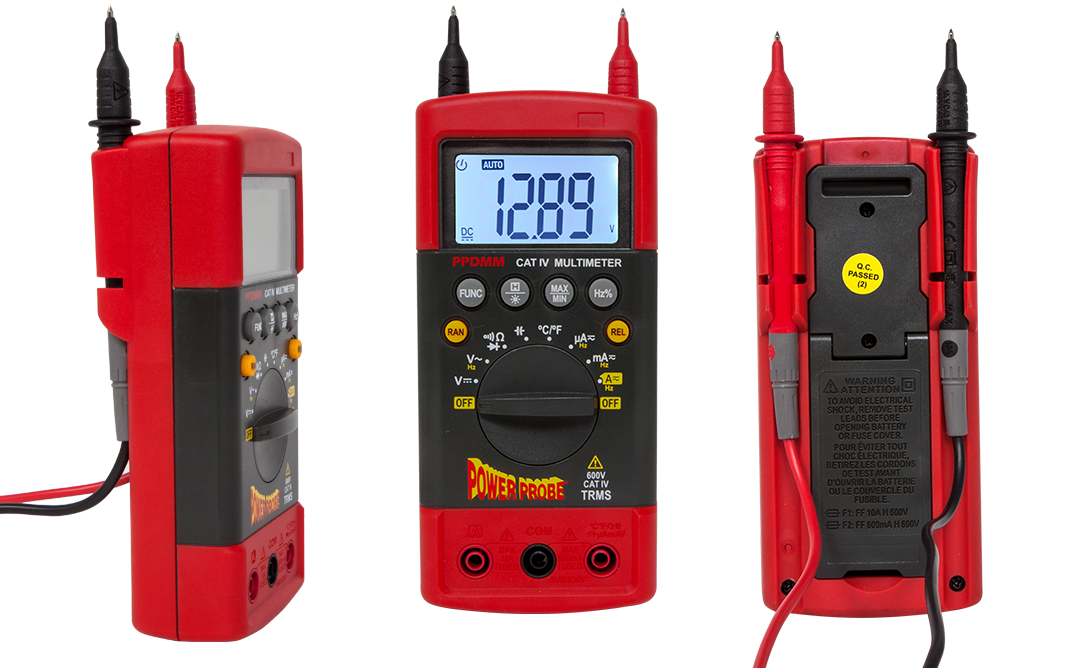

Rugged rubberized housing for the toughest of working environments

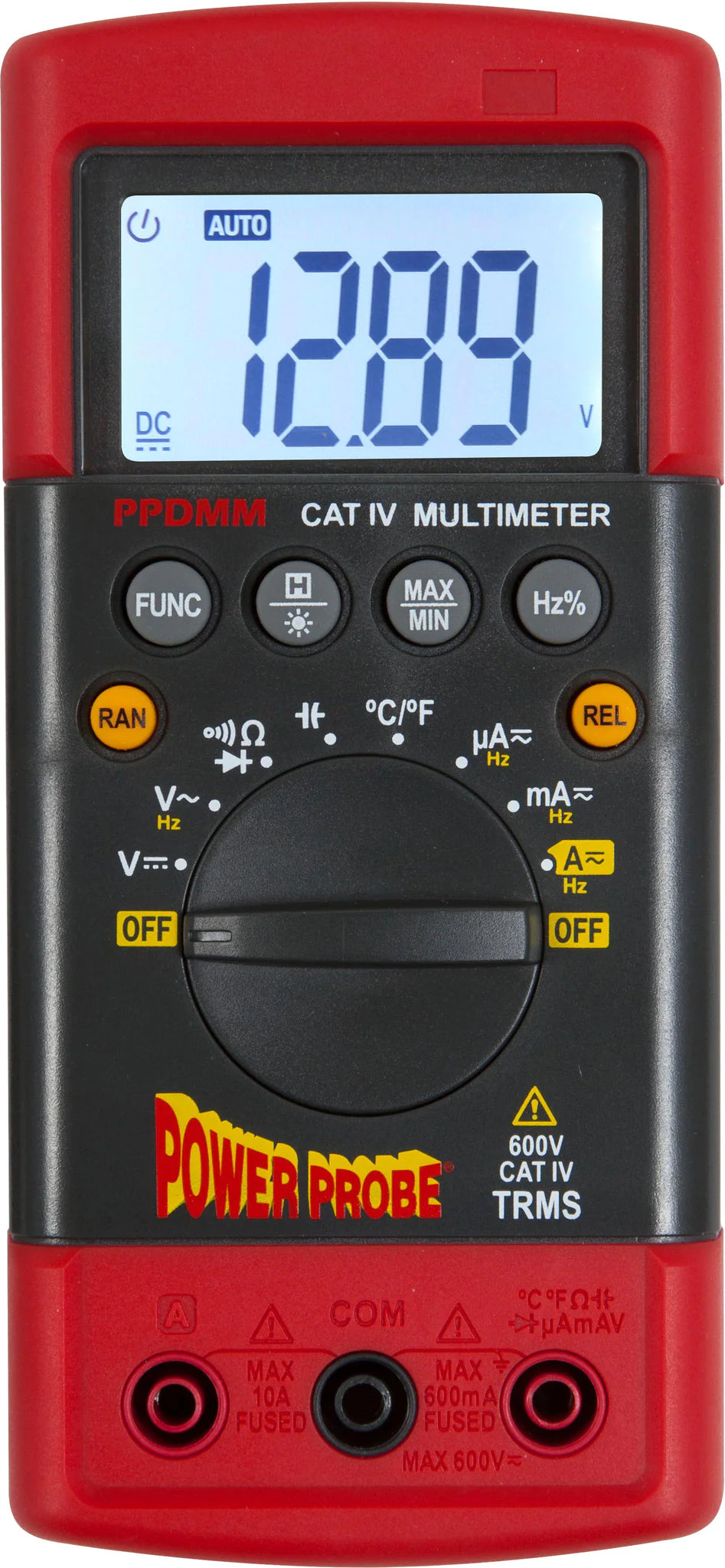

Large backlit LCD screen
Audible indicators
CAT IV hybrid safe rating
Operating Altitude |
2000m |
Relative Humidity |
75% max operating |
Operating Temperature |
0Β°C~40Β°C/32Β°F~104Β°F (<80% RH) |
Storage Temperature |
-10Β°C~60Β°C/14Β°F~140Β°F (<70% RH) |
Accuracy Temperature |
-18Β°C~28Β°C/64Β°F~82Β°F (<80% RH) |
Temperature Coefficient |
0.1x(specified accuracy)/Β°C (<18Β°C or >28Β°C) |
Sampling Frequency |
approx. 3 times/sec. |
Fuse Protection |
ΞΌA/mA input: F600mA/600V 10A input: F10A/600V |
DC/AC Voltage |
600V |
DC/AC Current |
10A |
Resistance |
60MΞ© |
Capacitance |
60mF |
Frequency |
10kHz |
Diodes |
2.7V |
Continuity |
<50Ξ© |
Temperature |
-20Β°C~1000Β°C/-4Β°F~1832Β°F |
LCD Display |
3 ΒΎ digit display (6000 counts) |
Product Supply |
3x1.5V AAA batteries |
Product Size |
160mmx74mmx49mm / 6.3"x2.9"x1.9" |
Product Weight |
482g / 1.06lb |
Safety Rating |
CAT IV 600V |
pollution degree |
II |
Safety Standards |
IEC61010-1 |
Pollution Degree |
2 |
Accuracy |
Β±(of reading + # of least significant digits) |
